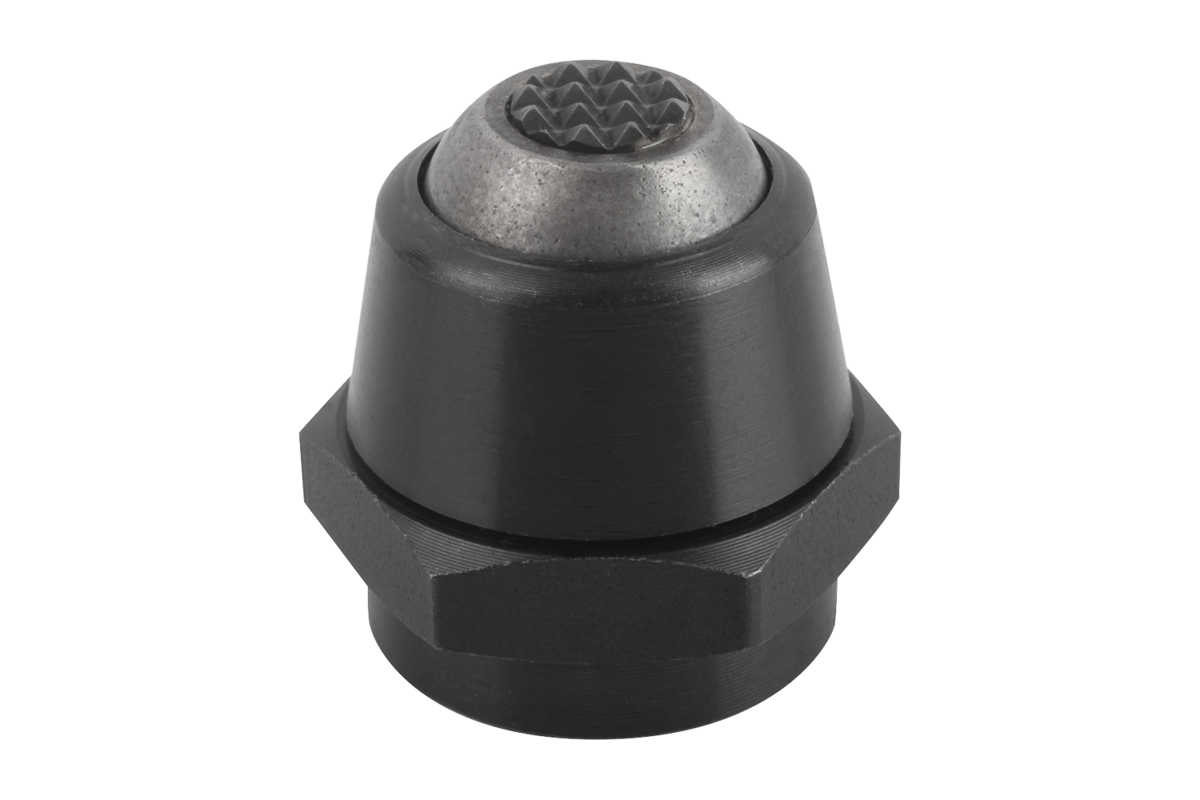

Self-aligning pads, swivel angle 14° and 20°, Form M, flattened ball with carbide diamond grips

  • Serve as supports, stops and thrust pads
  • Application sectors: machine and fixture construction, assembly
  • Self-aligning pad can be swivelled
  • Absorbtion of high load forces
  • O-ring for protection against dirt and foreign particles
Special features:

from €60.71

plus sales tax
9 Products

drawing

Description

Material
Body steel.
Ball rust and acid resistant steel.
Form M with carbide insert.
Version
Body black oxidised.
Ball bright.
Note
Self-aligning pads are used to support and clamp unmachined and machined workpieces. They also serve as stops, supports and thrust pads in fixture and toolmaking.
Grub screws or threaded studs can be screwed and glued into thread D2 making a self-aligning pad with external thread.

Ball secured against rotation.
Advantages
- Self-aligning pads can be swiveled.
- High load forces can be absorbed.
- The built-in o-ring keeps dirt and foreign particles out, which in turn guarantees reliable operation.
