- For positioning of workpieces and fixture parts in holes with toleranced dimensions
- Toleranced dimension for exact positioning
- Suitable as feet for fixtures
- Hardened and ground
- Support faces without centrebore
Description
Material
Tool steel.
Version
Hardened and ground.
Note

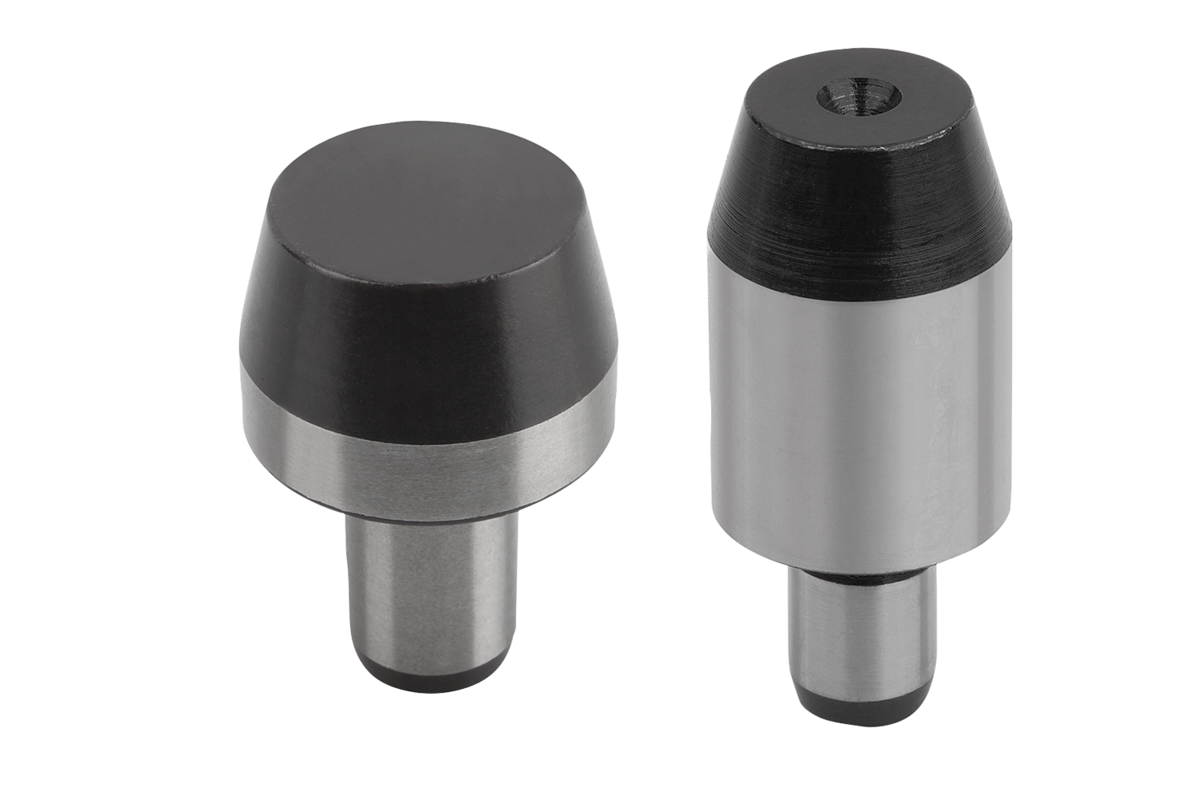

Locating pins Form B serve to position workpieces and fixture parts in reamed holes.
Locating pins Form B can also be used as hardened stops and as fixture feet.
For similar locating pins see 03120, 03130, 03140 and 03150.
Locating pins Form B can also be used as hardened stops and as fixture feet.
For similar locating pins see 03120, 03130, 03140 and 03150.
