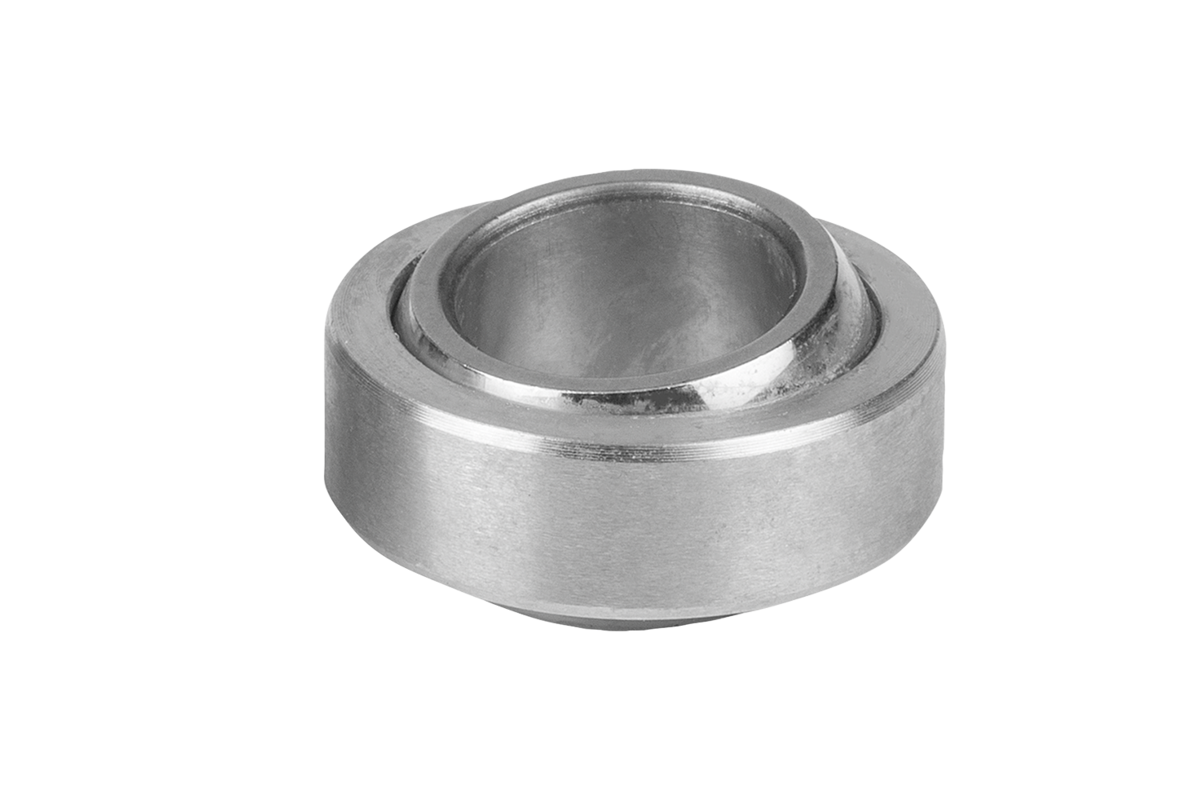

Spherical Bearing
dimensional series k
stainless steel
ground and polished
- Suitable for use under high pressure
- Maintenance-free
- Durable
- Low friction
€16.39
plus sales tax
Added to your shopping cart
Designation
Spherical Bearing
Version 1
dimensional series k
DIN ISO standard
12240-1
Body material
stainless steel
Component material
PTFE
Body surface finish
ground and polished
Steel code
1.4571
D1=Outside diameter
18H7
D=Internal diameter
8H7
T1=Dynamic load ratings N
16700
T2=Static load ratings N
27800
U=Speed limit rpm
420
H
12
H1
9
K
15,87
α
14°
Description
Material
Bearing shell stainless steel 1.4571.
Ball joint stainless steel 1.4034.
Bearing surface PTFE/stainless steel insert.
Ball joint stainless steel 1.4034.
Bearing surface PTFE/stainless steel insert.
Version
Ground, polished.
Note
Suitable for high dynamic loads. The fitting dimensions comply with DIN ISO 12240-1 E/K.
