Plain Bearing

with collar

sintered bronze

  • Self-lubricating
  • Maintenance-free
  • Ready to install
Special features:
Item number:
23761-00801212

€1.43

plus sales tax
Item number:
23761-00801212
Designation
Plain Bearing
Version 1
with collar
Body material
sintered bronze
D1=Outside diameter
12
D=Internal diameter
8
D2
16
L1
12
L2
2
R
0,3
Weight
6.1 G

Description

Material
Sintered bronze similar to SINT A50.
Version
Oil impregnated (ca. 25 percent by volume oil).
Hardness min. 25 HB.
Technical Data
Static load: max. 50 N/mm²
Dynamic load: max. 10 N/mm²
Friction coefficient, dry: 0.05 to 0.10
Sliding speed: max. 5 m/s
Maximum pv value: 1.6 N/mm² * m/s
Temperature range: -20 °C to +100 °C

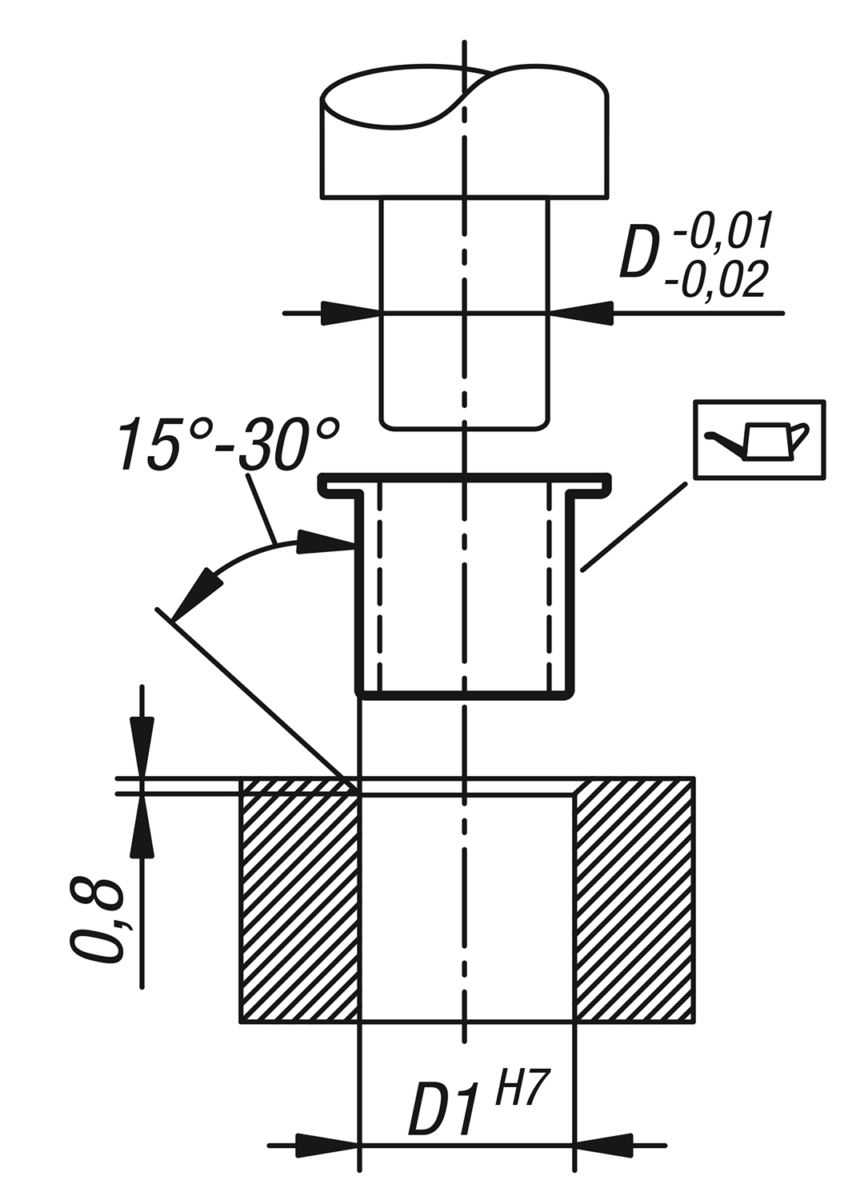

Assembly
Press in plain bearings, do not hammer in. The use of a suitable press mandrel is advisable. Without a mandrel there is a risk that the bearing may deform during installation. After press-fitting into a housing with bore H7 the bore D has a H7 tolerance.
Tolerances
Housing:
Recommended tolerance H7.

Shaft:
Recommended tolerance h6 to h9. Hardened or non-hardened ground shafts can be used (for secondary applications drawn shafts can also be used).
