07134

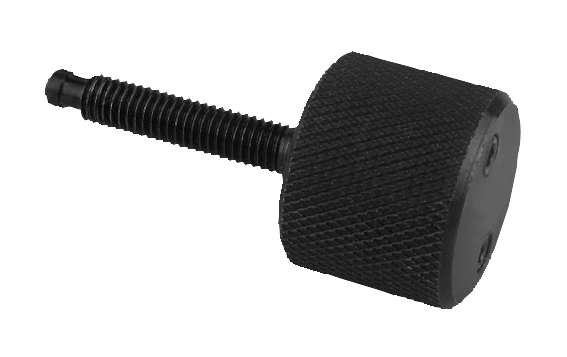

Torque screws with ball thrust points
-
TORQUE SCREW W. BALL THRUST POINT D=M06X40 FREE-CUTTING STEELItem No. 07134-06X40
- D=Thread
- M06
- L=Thread length
- 40
from €82.24plus sales taxplus shipping costsMore details -
TORQUE SCREW W. BALL THRUST POINT D=M06X60 FREE-CUTTING STEELItem No. 07134-06X60
- D=Thread
- M06
- L=Thread length
- 60
from €83.77plus sales taxplus shipping costsMore details -
TORQUE SCREW W. BALL THRUST POINT D=M08X60 FREE-CUTTING STEELItem No. 07134-08X60
- D=Thread
- M08
- L=Thread length
- 60
from €83.77plus sales taxplus shipping costsMore details -
TORQUE SCREW W. BALL THRUST POINT D=M08X80 FREE-CUTTING STEELItem No. 07134-08X80
- D=Thread
- M08
- L=Thread length
- 80
from €85.99plus sales taxplus shipping costsMore details -
TORQUE SCREW W. BALL THRUST POINT D=M10X60 FREE-CUTTING STEELItem No. 07134-10X60
- D=Thread
- M10
- L=Thread length
- 60
from €85.99plus sales taxplus shipping costsMore details -
TORQUE SCREW W. BALL THRUST POINT D=M10X80 FREE-CUTTING STEELItem No. 07134-10X80
- D=Thread
- M10
- L=Thread length
- 80
from €106.77plus sales taxplus shipping costsMore details -
TORQUE SCREW W. BALL THRUST POINT D=M12X80 FREE-CUTTING STEELItem No. 07134-12X80
- D=Thread
- M12
- L=Thread length
- 80
from €106.77plus sales taxplus shipping costsMore details -
TORQUE SCREW W. BALL THRUST POINT D=M12X100 FREE-CUTTING STEELItem No. 07134-12X100
- D=Thread
- M12
- L=Thread length
- 100
from €106.77plus sales taxplus shipping costsMore details
Description
Material
Steel.
Version
Black oxidised.
Note
The torque required for the knurled screw is generated by two spring-mounted thrust balls.
As soon as the adjustable final pressure is reached, the grip runs free.
The final pressure is set using the set screws located in the head.

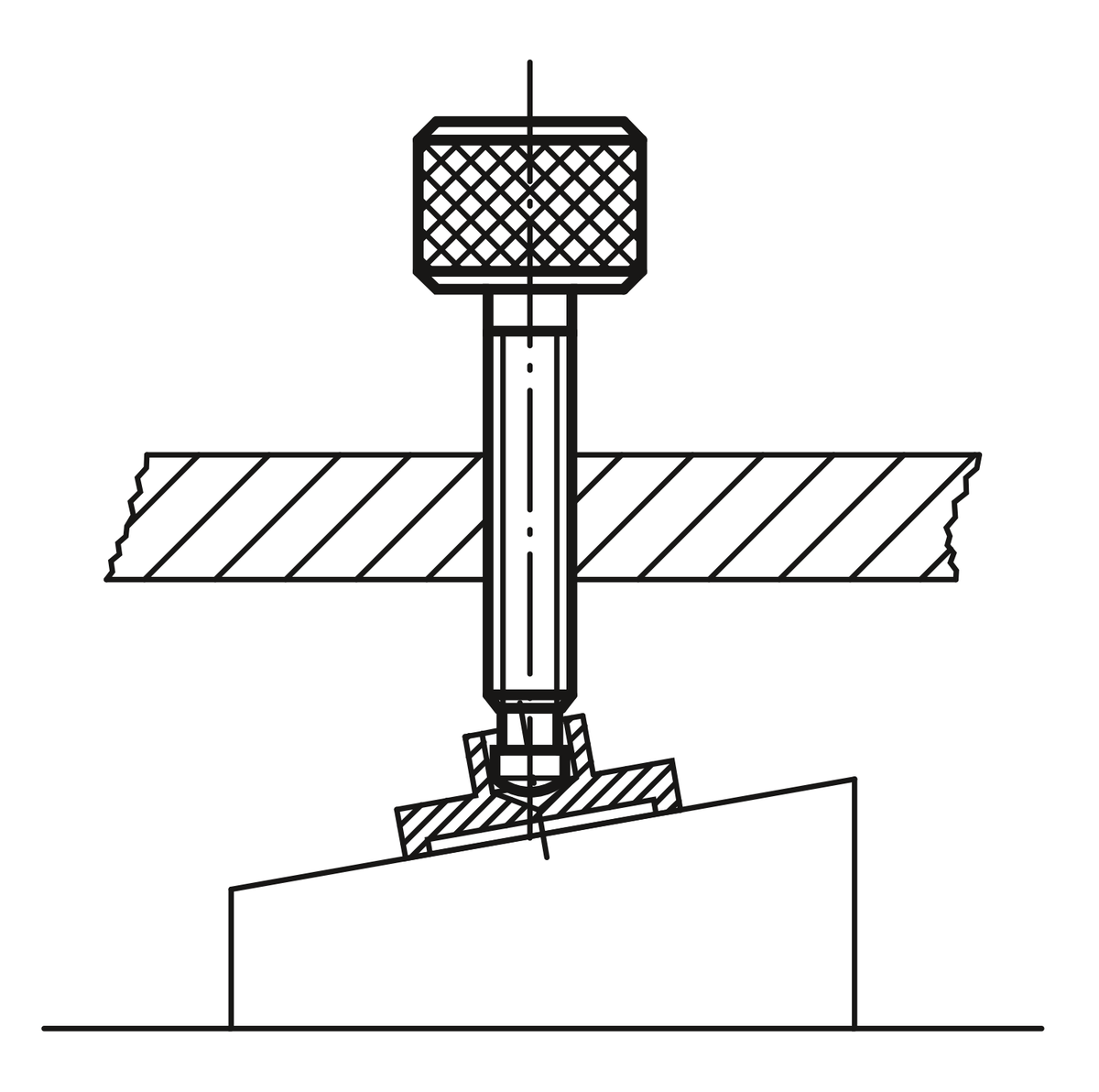

These torque screws are particularly useful when used together with thrust pads (07138, 07140 or 07141) for clamping sloping surfaces.
As soon as the adjustable final pressure is reached, the grip runs free.
The final pressure is set using the set screws located in the head.
These torque screws are particularly useful when used together with thrust pads (07138, 07140 or 07141) for clamping sloping surfaces.
Forces
F1 = Minimum final pressure
F2 = Maximum final pressure
F2 = Maximum final pressure
