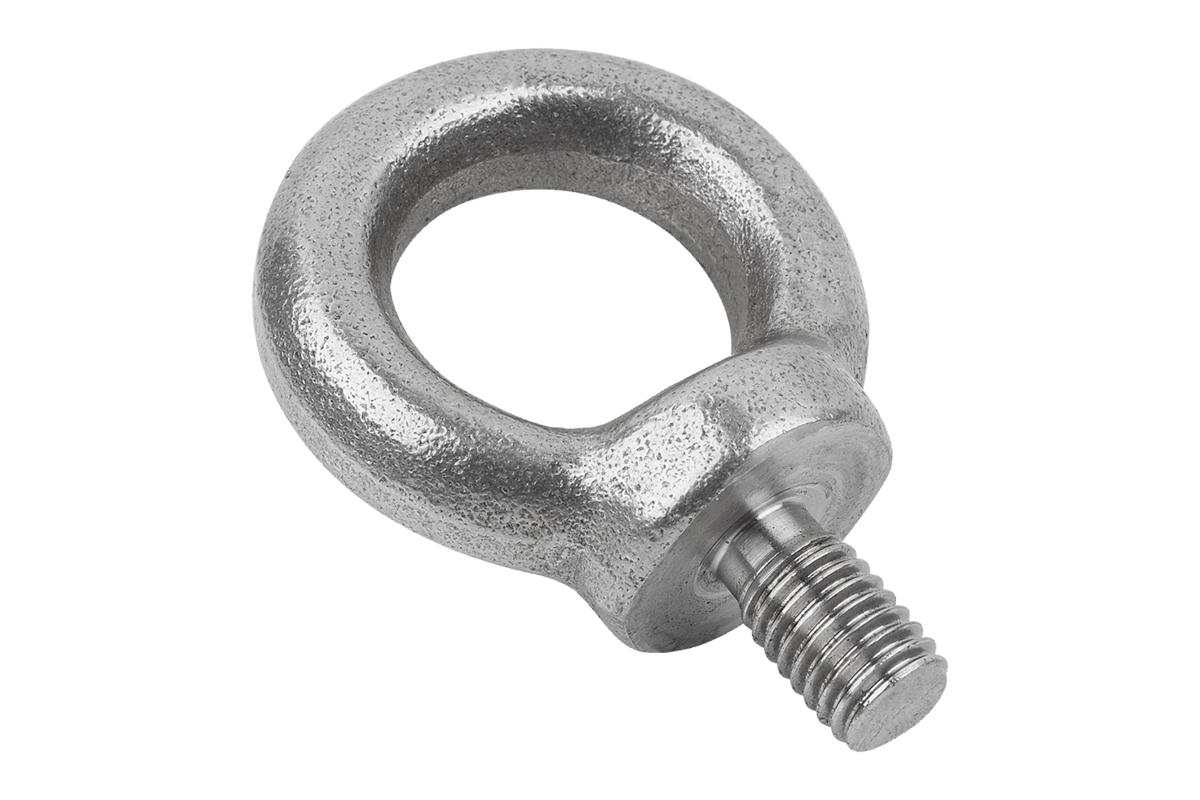

Ring Bolt
fixed
stainless steel
- For hoisting and transport tasks
- Application sectors: machine and fixture construction, toolmaking, logistics, material handling
- Version: steel or stainless steel
Sales unit
€3.61
plus sales tax
Added to your shopping cart
Item
Ring Bolt
Version 1
fixed
DIN
DIN 580
Main
material
stainless steel
Steel code
1.4301
D1=Thread
M8
D2
20
D3
36
D4
20
E
6
F1 max.
kN
1,4
F2 max.
kN
0,95
H
36
K
8
Kind of fastening
screw-on
L
13
M
10
Permissible
load
kg
96,9
Description
Material
1.1141 steel, 1.4301 stainless steel or 1.4401 stainless steel.
Version
Drop forged.
Steel, bright.
Steel electro zinc-plated.
Steel, bright.
Steel electro zinc-plated.
Note
For high demand hoisting and carrying tasks in safety-relevant areas (machine construction, load handling equipment, lifting tackle).
The CE mark is impressed into the ring bolt.
F2 permissible load under max. 45° per ring bolt.
The CE mark is impressed into the ring bolt.
F2 permissible load under max. 45° per ring bolt.
On request
Certificate of conformity.
