07598

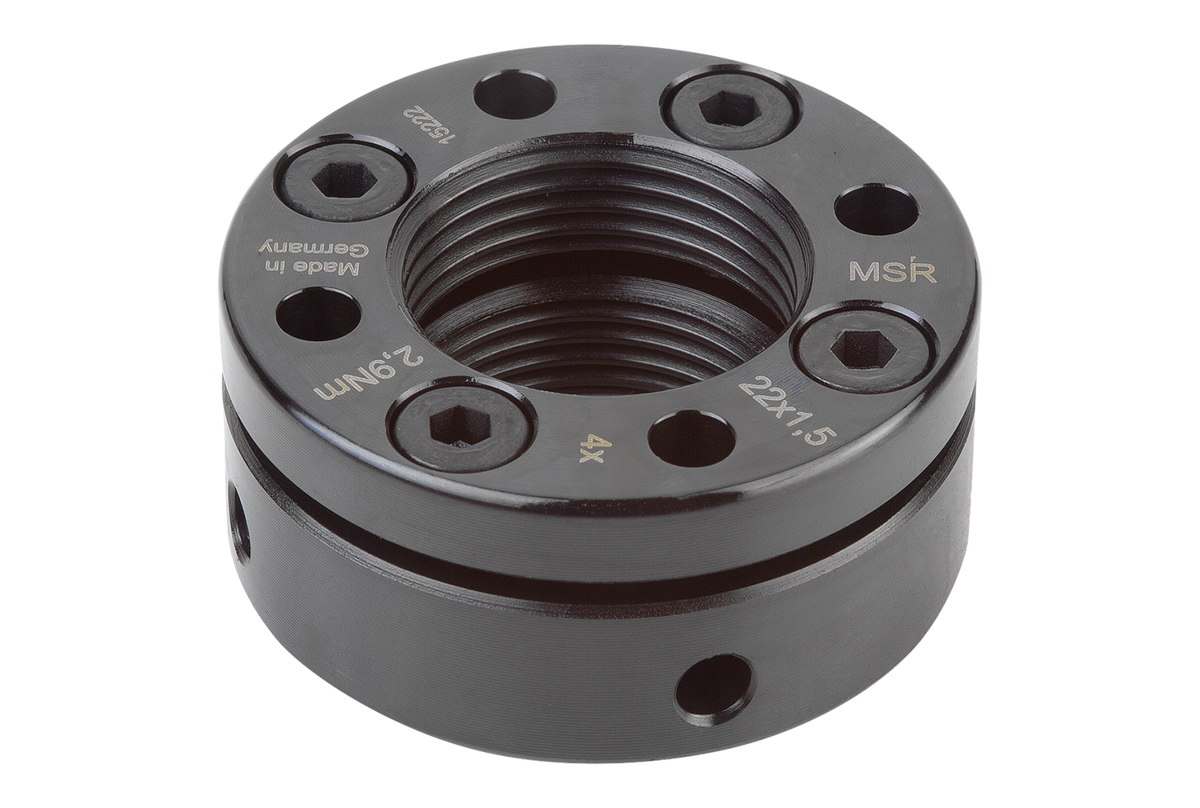

Adjusting Nut

steel

black oxidised

  • Enables infinite and precise positioning
  • High axial rigidity
  • Replaces the locknut
Item number:
07598-053351522

€28.62

plus sales tax

Available immediately Available soon Available again soon Product available?
Register with your customer account
here now to see the availability!
Item number:
07598-053351522
Designation
Adjusting Nut
Product type
adjustment nut
Body material
steel
Component material
high carbon steel
Body surface finish
black oxidised
D1=Outside diameter
53
D=Thread
M35x1,5
F1=Max. stat. axial pressure l
66000
F2=Max. dyn. axial pressure lo
47000
G=thread / for thread
M35X1,5
H=Height
22
MA=Tightening torque (Nm)
2,9
Mt=Inertia moment (gcm²)
914
U=Calculation factor (mm)
2,210
V=Specific surcharge
3,666
D3
45,5
D4
4,3
D5
5
D6
M04
Fastening type
hexagon socket
L
7
Weight
176.3 G

Description

Material
Steel.
Clamping screws carbon steel.
Version
Black oxidised.
Clamping screws ISO 4762, grade 12.9.
Note
Two screw parts that are elastically connected are tightened against each other with screws.
The adjustment nut is constructed rotationally symmetric. There are no unbalancing keyways or slots.
Attention
The adjustment nut can be axially deformed and must be handled with care. The clamping screws may only be tightened when the adjustment nut is completely screwed onto the spindle thread, otherwise the adjustment nut could become defective through unacceptable plastic deformation.
