07120

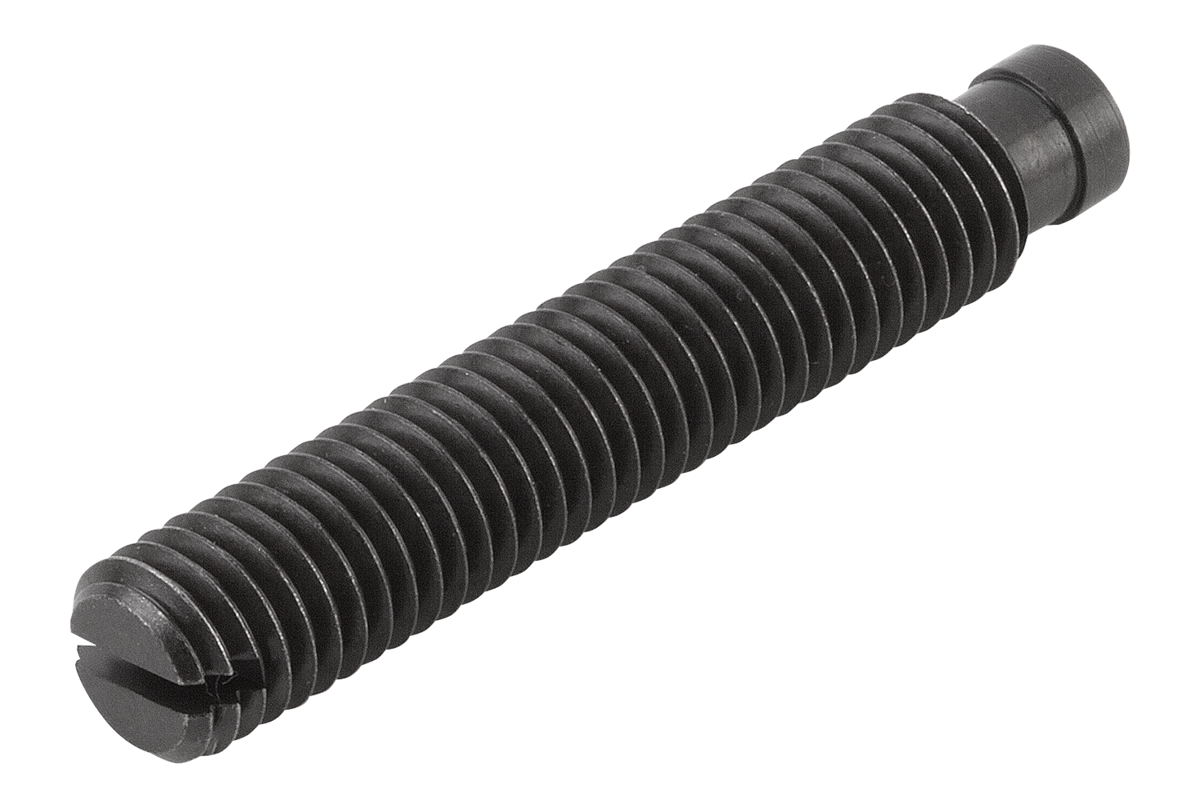

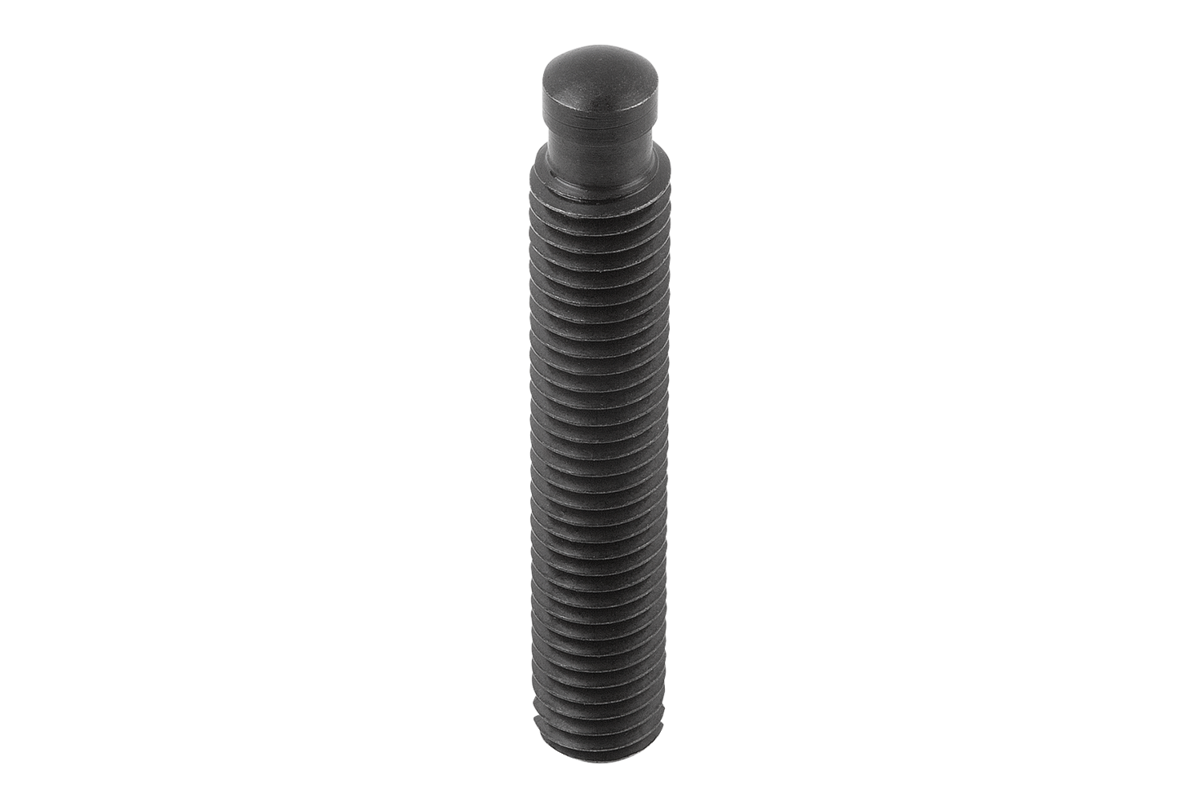

Grub Screw

with thrust point

steel

  • Is used together with thrust plate K0392 for clamping
  • Material: steel or stainless steel
  • Different thread sizes
Special features:
Item number:
07120-10X80

€1.34

plus sales tax
Item number:
07120-10X80
Designation
Grub Screw
Version 1
with thrust point
DIN Standard
DIN 6332
Body material
steel
D1=Thread
M10
L1=Length
80
L=Thread length
71
D2
8
D3
7,2
L2
9
L3
4,5
L5
3,6
Weight
36.87 G

Description

Material
Steel or stainless steel.
Version
Steel: thrust point case-hardened, black.
Stainless steel: bright.

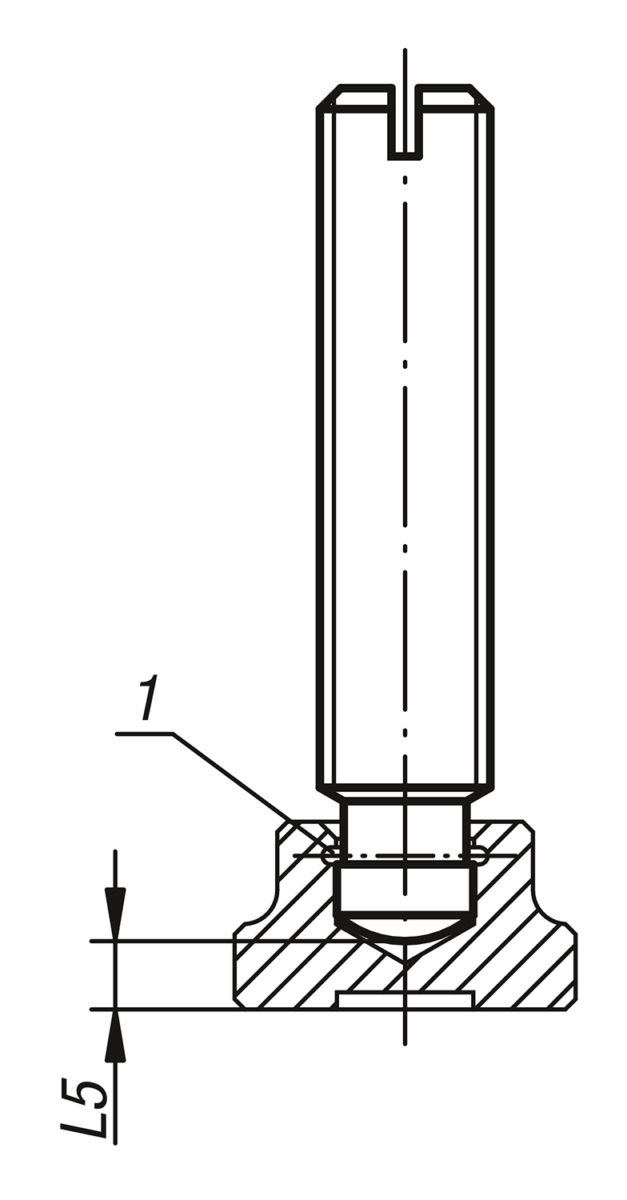

Drawing reference
1) snap ring
