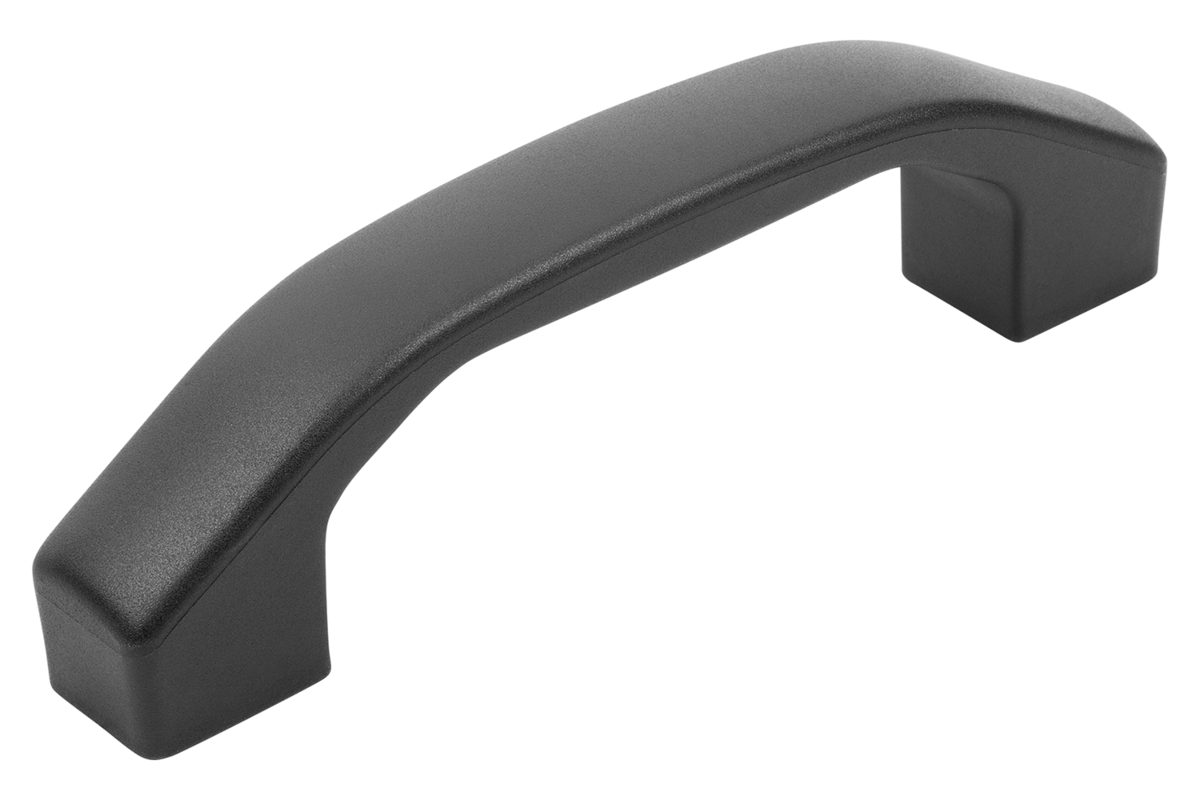

Pull Handle
resistant to high temperatures
polyphtalamide
black grey RAL 7021
- Retaining element to open and close lids, panels and hoods
- Application fields: machine and plant construction, toolmaking, furniture industry, rehabilitation and medical technology
- Large volume and pleasant haptics
- Mounted: from the rear
- Grip material: thermoplastic PPA, permanent operating temperature max. 160 °C
Sales unit
€17.77
plus sales tax
Added to your shopping cart
Item
Pull Handle
Form
B
Version 1
resistant to high temperatures
Main
material
polyphtalamide
Component
material
stainless steel
Main
colour
black grey RAL 7021
A=Hole spacing
140
D=Fastening hole
M8
L=Length
170
Assembly
from the rear
B
24
C
15,4
Form definition
with internal thread
H
46,5
Load
capacity
N
1000
Pull handle: cross section
ergonomic
RoHS
true
S
28
T
12
Description
Material
Thermoplastic PPA (resistant to high temperatures), fibreglass reinforced.
Bush, stainless steel.
Bush, stainless steel.
Version
black.
Note
This pull handle is characterised by its large size and pleasant haptics.
Easy to clean due to its closed and smooth design (i.e. suitable for foodstuff production, medical technology).
Screw-on dimension ”A” applies after grip assembly. In the unassembled state it may deviate through flexural stress by deforming.
Easy to clean due to its closed and smooth design (i.e. suitable for foodstuff production, medical technology).
Screw-on dimension ”A” applies after grip assembly. In the unassembled state it may deviate through flexural stress by deforming.
Temperature range
Continuous operating temperature acc. to IEC 216 max. 160 °C.
Short-term operating temperature: max. 250 °C.
Suitable for steam sterilisation (medical technology).
Short-term operating temperature: max. 250 °C.
Suitable for steam sterilisation (medical technology).
Assembly
From the rear.
