04754

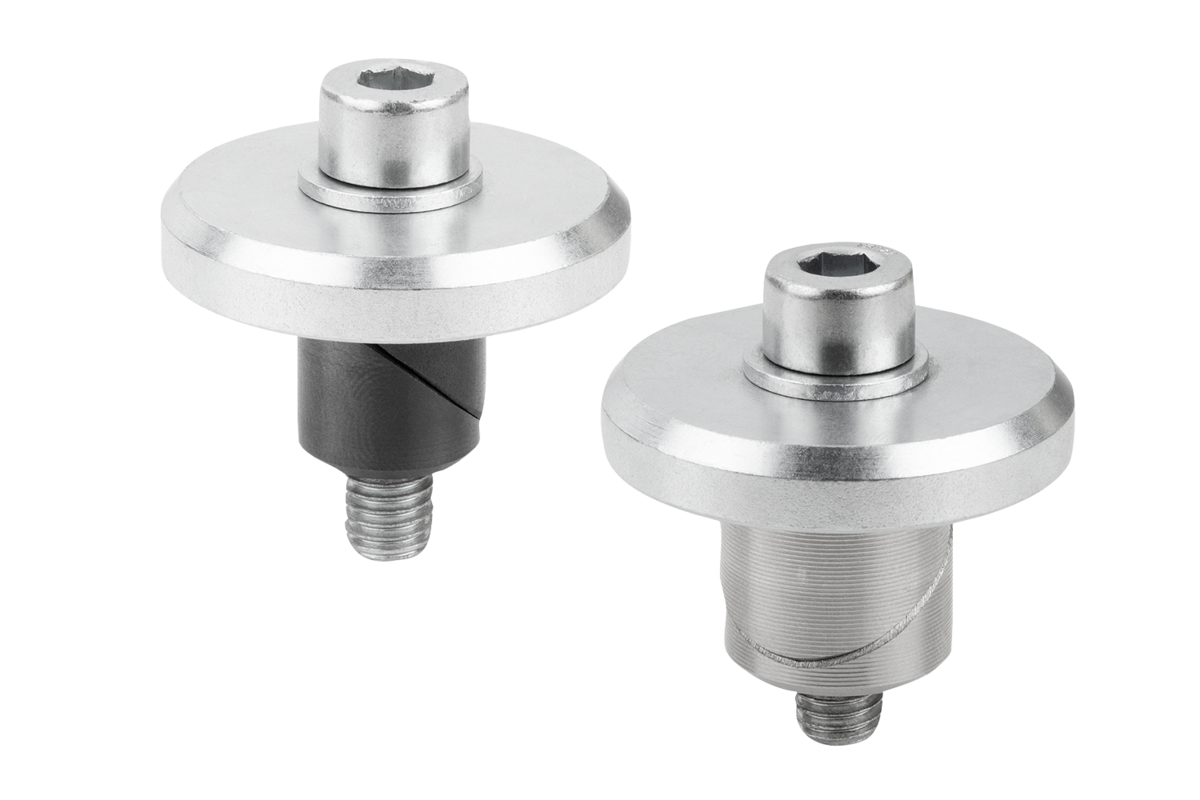

Clamping pin, steel or stainless steel with washer

Description

Material
Washer steel 1.0715.

Wedges steel 1.0715 or stainless steel 1.4305.
Version
Washer electro zinc-plated.
Wedges black oxidised or blank.
Note

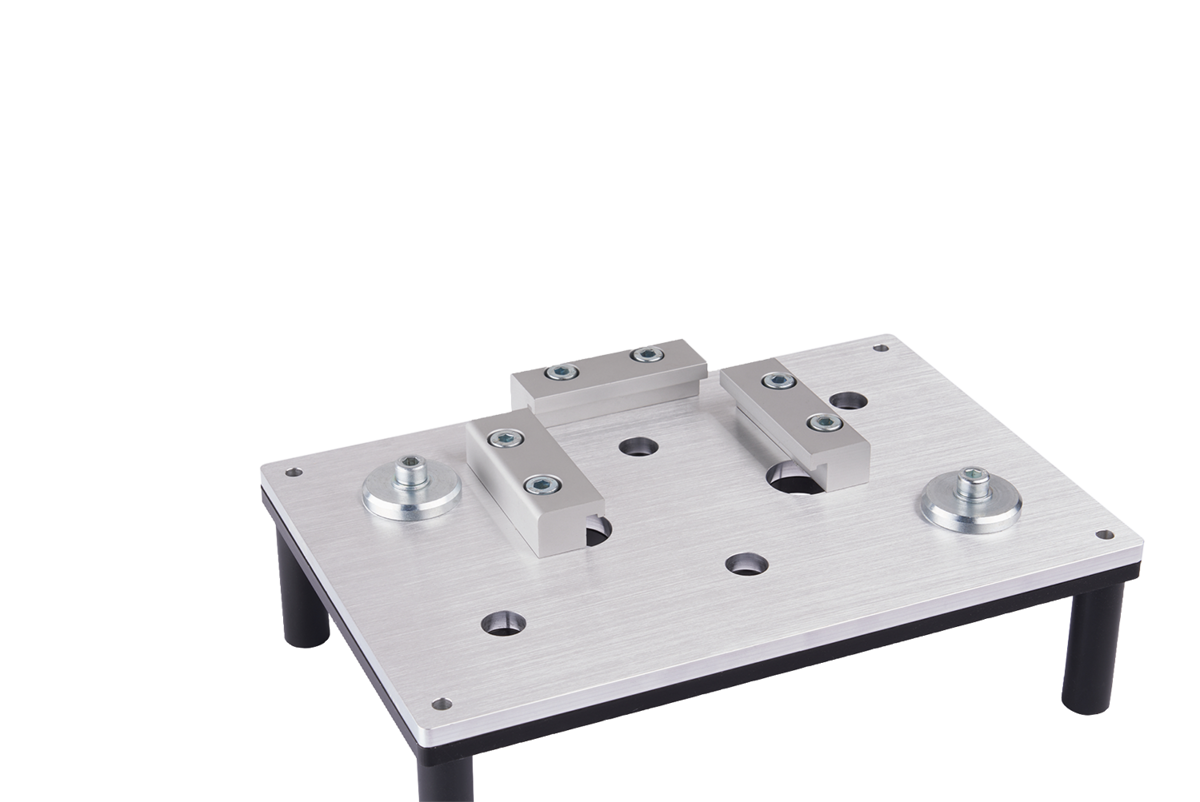

For fixating adapter plates, angles and plates open on grid hole tables or plates with Ø16 mm, Ø20 mm or Ø28 mm holes. Can also be used as a point end stop for positioning and fixating exchange clamping plates. By turning the cap screw, the lock wedges expand in the bore.
Advantages
Functions also in thin table material (metal: ≥8 mm or ≥4 mm ; wood ≥18 mm).
Gentle clamping in the bore.
Low height.
