03330

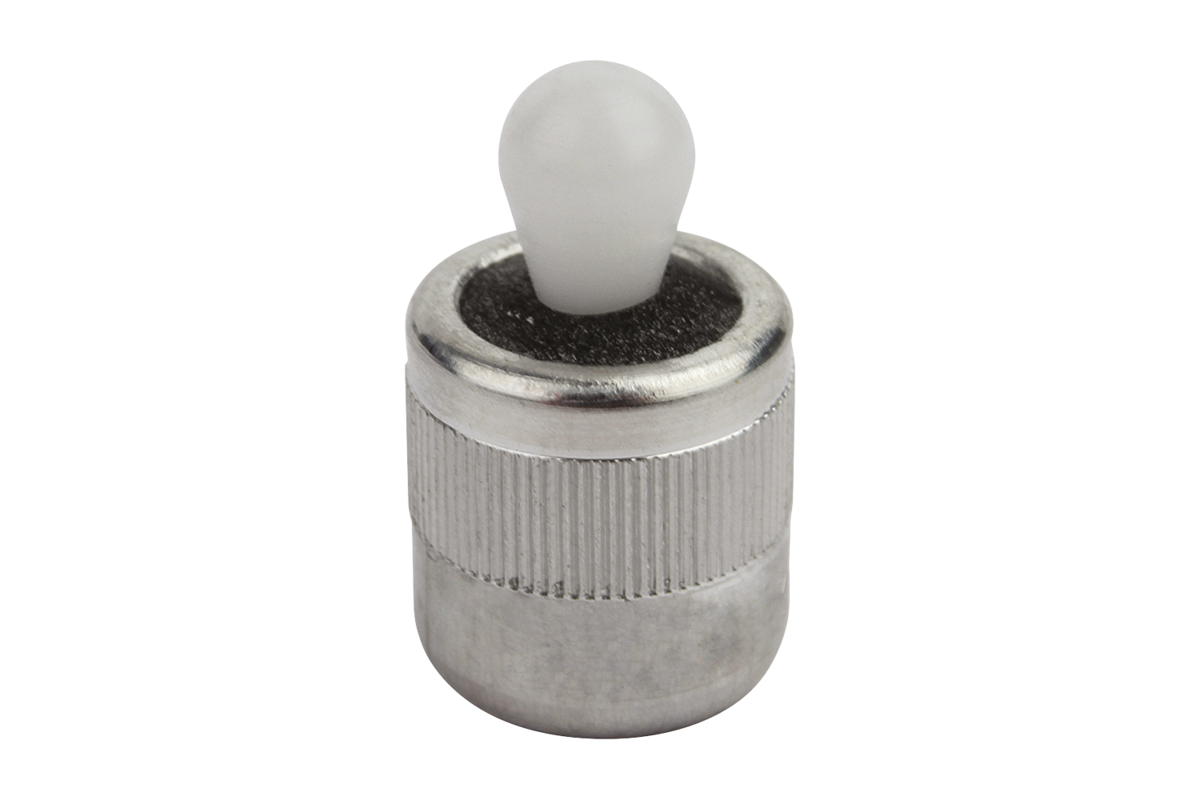

Lateral spring plungers with seal, thrust pin POM, spring steel

  • Positioning, clamping, retaining and fixating of workpieces
  • Universally applicable
  • Plastic thrust pin
Special features:

from €4.54

plus sales tax

drawing

Description

Material
Sleeve in aluminium; spring in steel; pressure pin in plastic
Version
Sleeve blue electro zinc-plated.
Note
Lateral spring plungers are for positioning, clamping, holding and fastening of workpieces during engraving, labelling, drilling, reaming, tapping, honing, grinding, welding, soldering, tooling, assembling, etc.
Eccentric adjustment bushes are also avaialable.

Dimensions W and Z are customer specific.
Drawing reference
1) assembly tool
