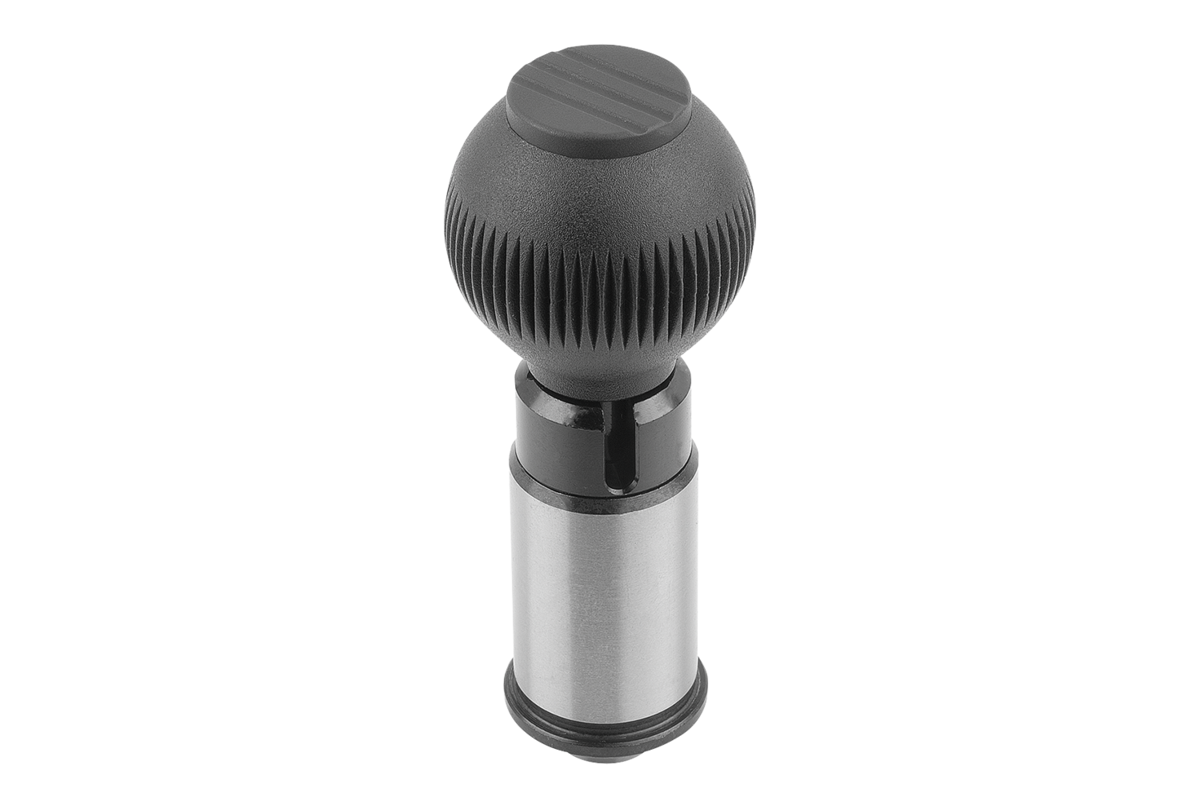

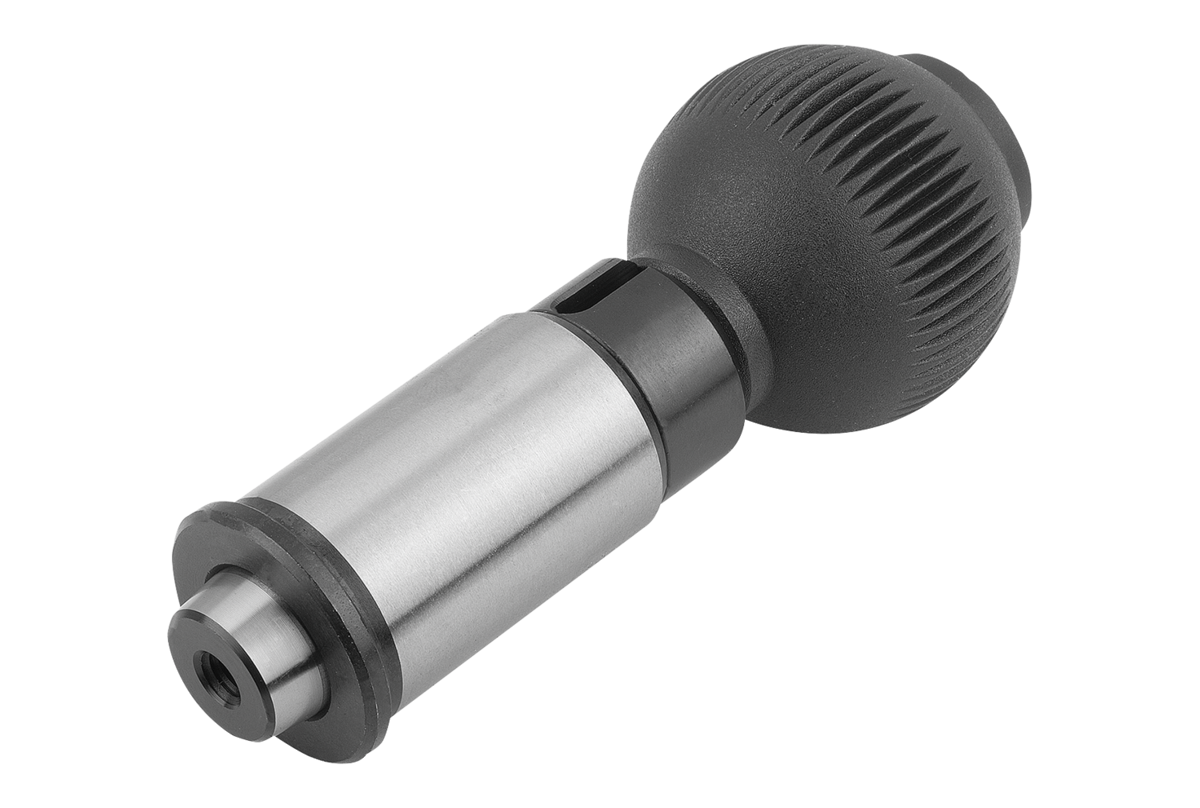

Precision Indexing Plunger
without locking slot
steel
hardened and ground
- Indexing plungers facilitate indexing and locking
- Quick positioning and fixating
- High stability
- High repeat accuracy
Sales unit
€89.23
plus sales tax
Added to your shopping cart
Item
Precision Indexing Plunger
Form
A
Version 1
without locking slot
Version 2
standard
Product type
high precision
Main
material
steel
Component
material
thermoplastic
Component
colour
black grey RAL 7021
Surface finish
body
hardened and ground
D1=Outside diameter
20
D=pin diameter
12
L=Length
87
D2
23
D3
32
L1
33
L3
13
L5
3
L6
35
Locknut
without locknut
Spring force
final pressure
F2 approx. N
35
Spring force
initial pressure
F1 approx. N
22
Travel
S
6
female thread grip ball
M8
Description
Material
Steel.
Grip ball thermoplastic.
Grip ball thermoplastic.
Version
Hardened and ground.
Grip ball black grey.
Grip ball black grey.
Note
The indexing plungers with bushes are a perfect combination for rapid positioning and fixating. The precise design of both the indexing plunger and the bush guarantees high repeat accuracy when assembling two elements.
For technical information see assembly and installation instructions.
For technical information see assembly and installation instructions.
Important note on downloading CAD models
In order to download our CAD models, you must log in first. If you have not created an account yet, please register under "My Account" (right side of the screen) and follow the instructions.
