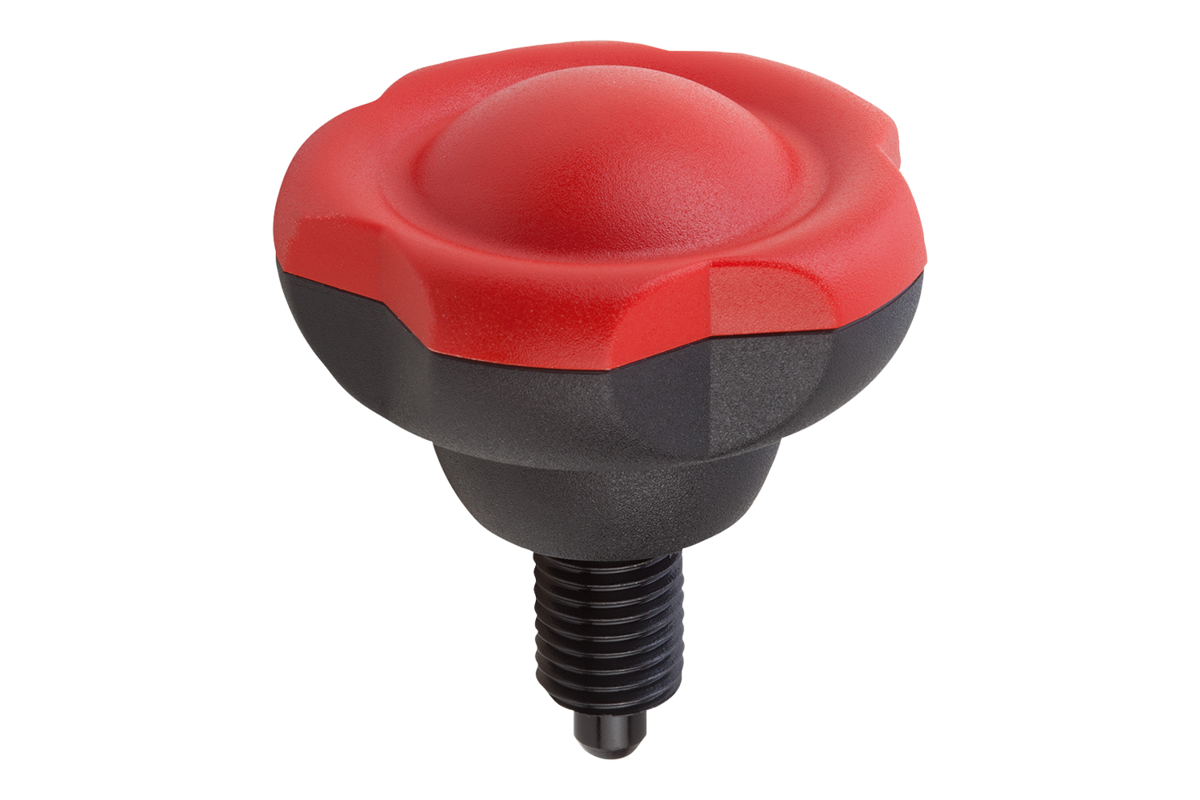

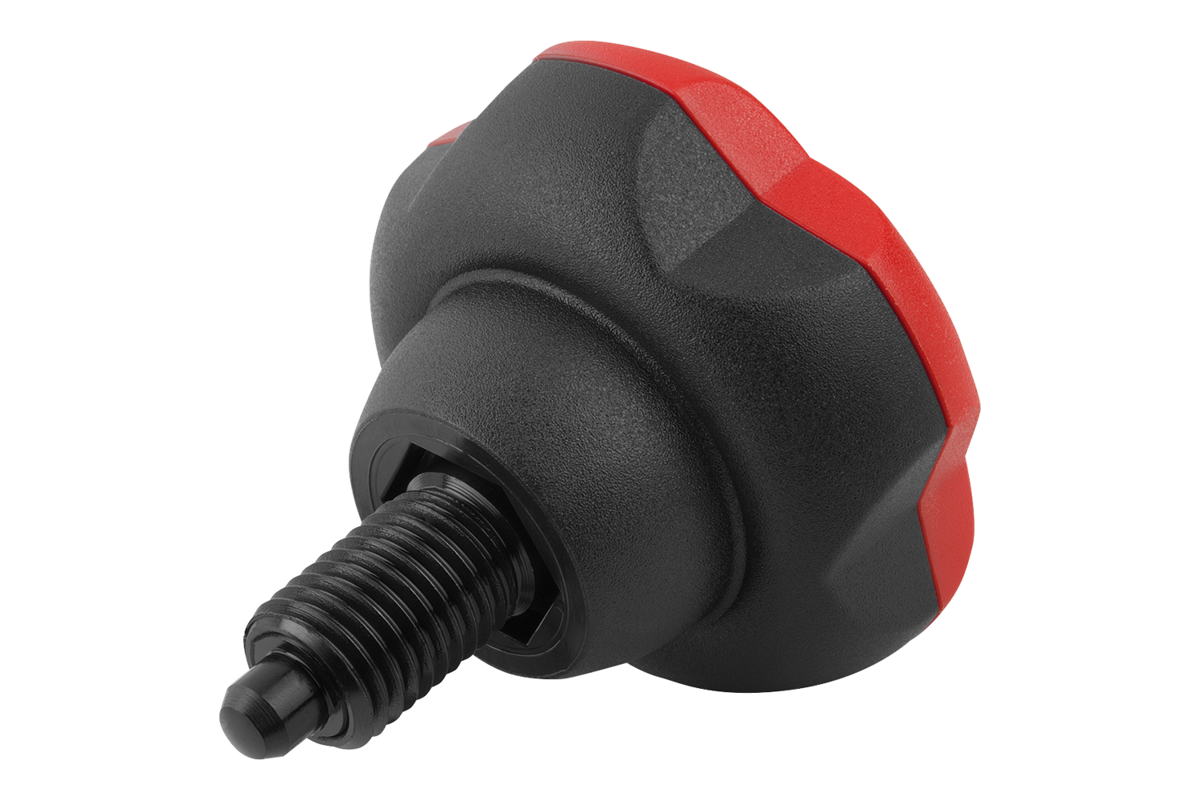

Indexing Plunger
without locking slot
thermoplastic
black grey RAL 7021

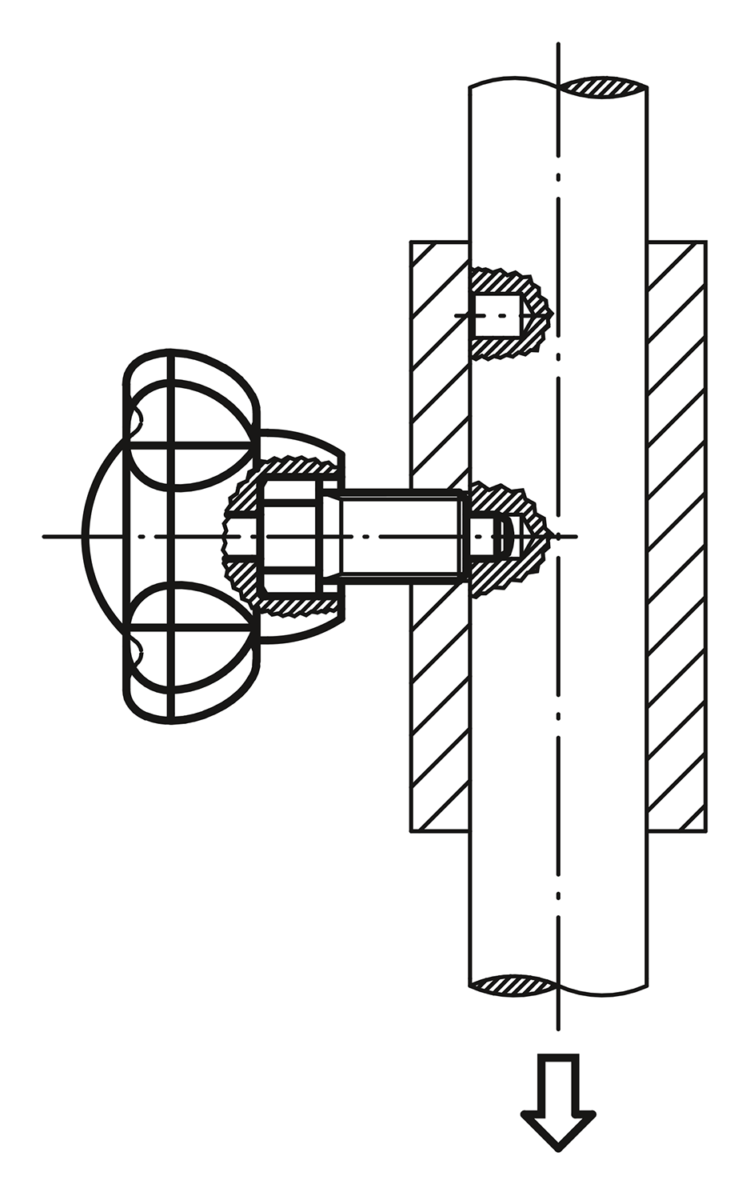

- Indexing plungers facilitate indexing and locking
- Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
- High stability
- Various colours available
€10.77
plus sales tax
Added to your shopping cart
Designation
Indexing Plunger
Size
3
Version 1
without locking slot
Version 2
with five lobe grip
Product type
with five lobe grip
Body material
thermoplastic
Component material
steel
Body colour
black grey RAL 7021
Component surface finish
hardened, ground and black oxidised
D1=Thread
M16X1,5
D2=Outside diameter
63
D=Pin diameter
8
L1=Thread length
22
L=Length
74
S=Travel
8
Cap colour
traffic red RAL 3020
D3
28
D4
35,5
H1
22,5
H2
14,5
Locknut
without locknut
SW
19
Description
Material
Thermoplastic.
Indexing pin and screw steel 5.8.
Indexing pin and screw steel 5.8.
Version
Lower grip black-grey.
Indexing pin and screw black oxidised.
Indexing pin hardened and ground.
Indexing pin and screw black oxidised.
Indexing pin hardened and ground.
