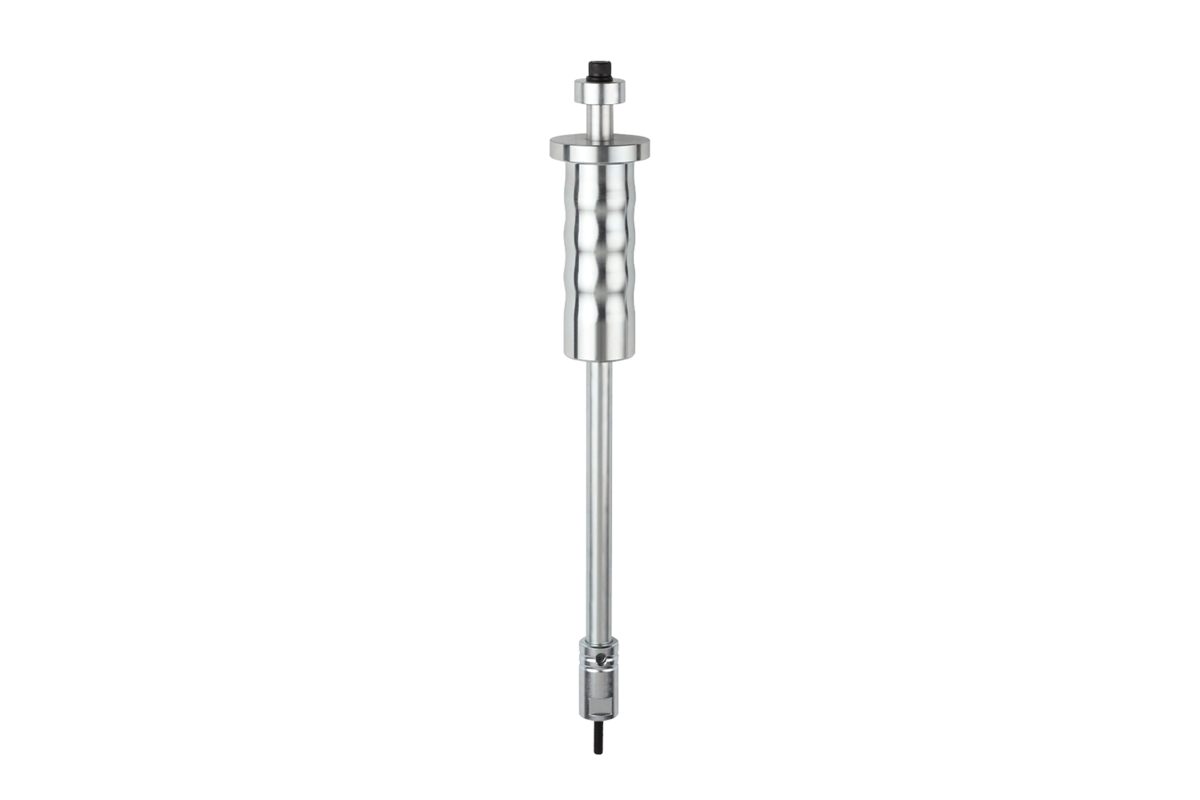

{"product":{"productId":"agid.2791","price":270.26,"name":"Extractor"},"currency":"EUR"}
Material
Hammer head carbon steel.
Shaft, stop and guide sleeves tool steel.
Shaft, stop and guide sleeves tool steel.
Version
Slide hammer tempered and chromed.
Shaft, stop and guide sleeve hardened and chromed.
Shaft, stop and guide sleeve hardened and chromed.
Show more
Show less
Description
Material
Hammer head carbon steel.
Shaft, stop and guide sleeves tool steel.
Shaft, stop and guide sleeves tool steel.
Version
Slide hammer tempered and chromed.
Shaft, stop and guide sleeve hardened and chromed.
Shaft, stop and guide sleeve hardened and chromed.
Note
These extractors are used to remove locating pins and centring pins (03105, 03106, 03107, 03108, 03325) with M3 - M8 tapped holes.
Drawing reference
1) stop
2) slide hammer
3) shaft
4) cross pin
5) lock screw
6) guide sleeve
7) cap screw
8) 1 set guide sleeves
2) slide hammer
3) shaft
4) cross pin
5) lock screw
6) guide sleeve
7) cap screw
8) 1 set guide sleeves
