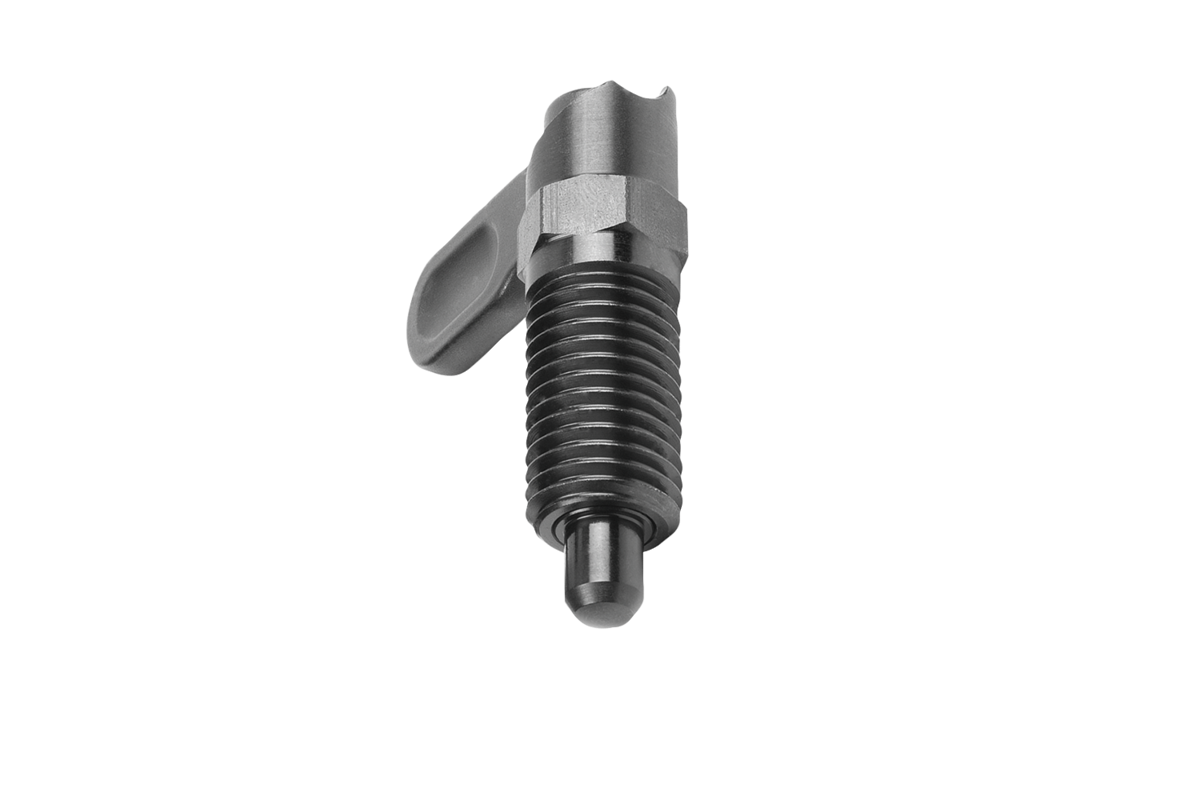

Cam action indexing plunger with stop, Form A and C

  • Can be used for all types of locking and fixating
  • The lock is released by turning the grip 180°
  • 180° stop prevents the indexing pin extending
  • Indexing notch for holding the position
  • Indexing pin hardened
Special features:

from €11.35

plus sales tax
  • 1(current)
  • 2
48 Products
  • 1(current)
  • 2

drawing

Description

Material
Steel grade 5.8.
Version
Black oxidised.
Pin hardened and ground.
Note
Cam-action indexing plungers are used when the indexing pin should not project all the time. Turning the handle through 180° retracts the pin.
A notch ensures that the handle remains in this position.
A stop prevents the handle being rotated through more than 180° ensuring that the pin remains retracted.
Selecting which side the stop is on defines the rotation direction of the plunger.
Drawing reference
1) Stop, left
2) Stop, right
