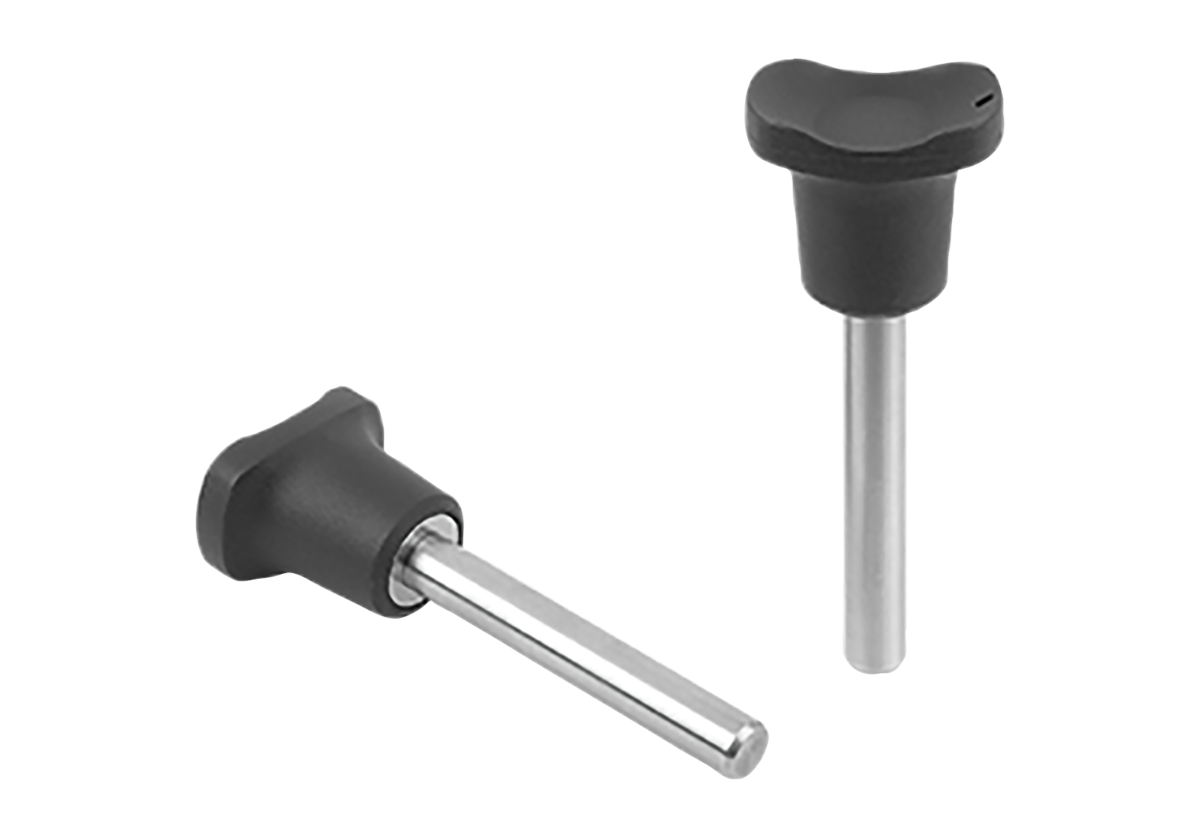

Locking pins with magnetic axial lock

  • 1(current)
  • 2
27 Products
  • 1(current)
  • 2

Description

Material
Grip thermoplastic.

Steel parts 1.4305 stainless steel.

Magnet NdFeB.
Version
Grip black.
Stainless steel bright.
Note
The locking pins with magnetic axial lock are used for fast and easy fixating and joining of parts and workpieces.
Magnets integrated into the grip ensure axial positioning and hold the locking pin in the inserted position.

Smooth surfaces and a perpendicular insertion bore have a positive effect on the retaining forces.

Optional retainer systems can be used to make the locking pins captive.

Shear force double-shear (F) = S · τ aB max.
Other pin lengths.

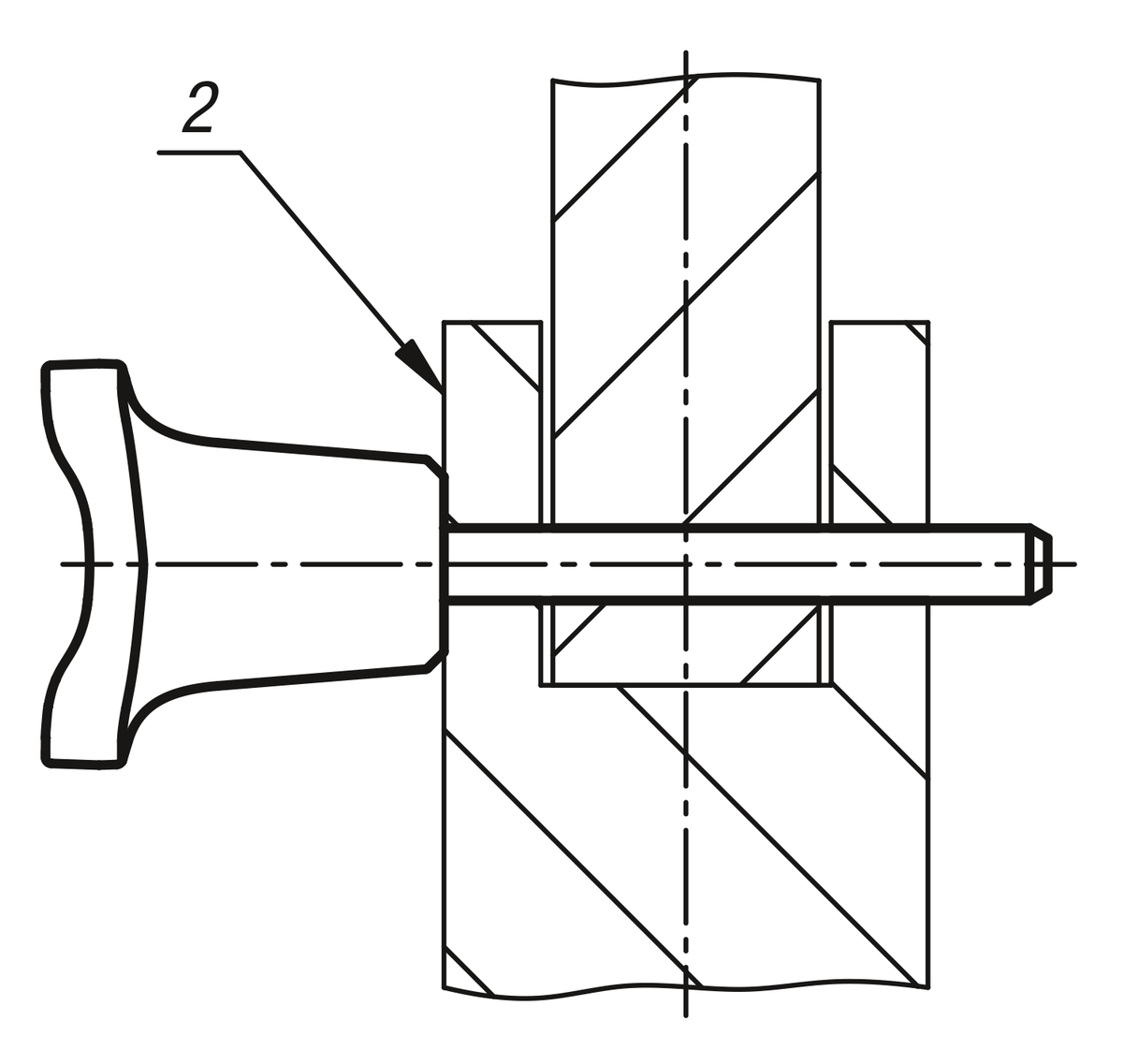

Drawing reference
1) Magnet
2) Steel part/workpiece
