Description

Material
Grip thermoplastic.

Steel parts 1.4305 stainless steel.

Magnet NdFeB.
Version
Grip black.
Stainless steel bright.
Drawing reference
1) Magnet
2) Steel part/workpiece
Other pin lengths.
Accessory
Safety spiral cable 03199....
Retaining cable with loop 03199....
Key ring 03199....
Ball chains 96390....
Note

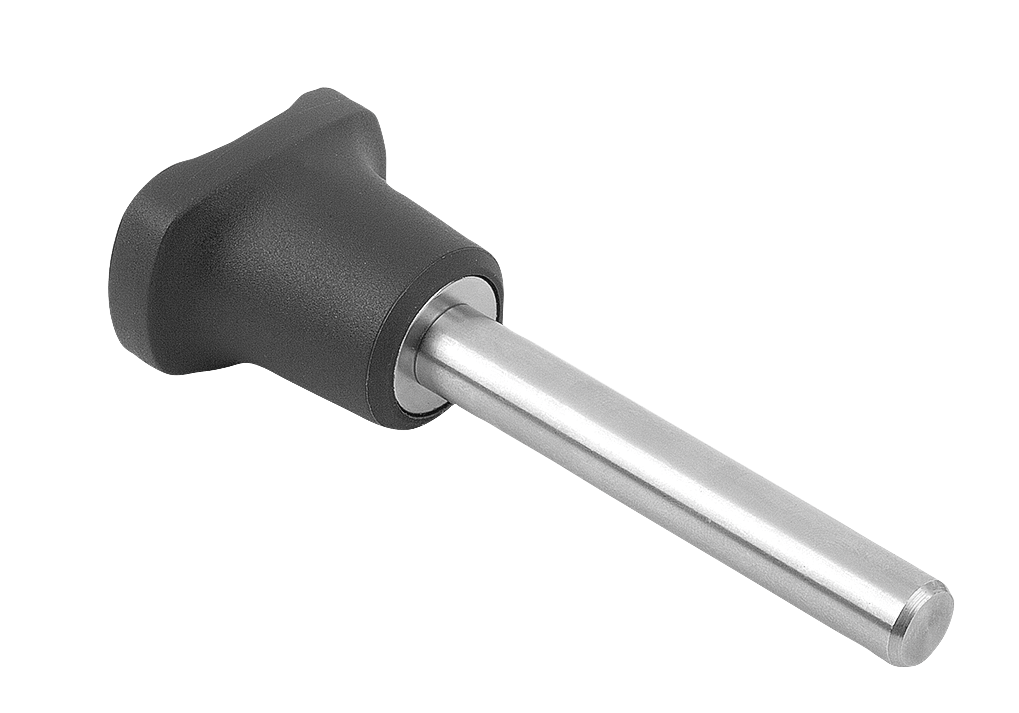

The locking pins with magnetic axial lock are used for fast and easy fixating and joining of parts and workpieces.
Magnets integrated into the grip ensure axial positioning and hold the locking pin in the inserted position.

Smooth surfaces and a perpendicular insertion bore have a positive effect on the retaining forces.

Optional retainer systems can be used to make the locking pins captive.

Shear force double-shear (F) = S · τ aB max.
