Material
Polyamide fibreglass reinforced
DIN 921 pan head screw, steel.
Retaining plate, steel.
DIN 921 pan head screw, steel.
Retaining plate, steel.
Version
Black.
Pan head screw and retaining plate electro zinc-plated.
Pan head screw and retaining plate electro zinc-plated.
Show more
Show less
Description
Material
Polyamide fibreglass reinforced
DIN 921 pan head screw, steel.
Retaining plate, steel.
DIN 921 pan head screw, steel.
Retaining plate, steel.
Version
Black.
Pan head screw and retaining plate electro zinc-plated.
Pan head screw and retaining plate electro zinc-plated.
Note

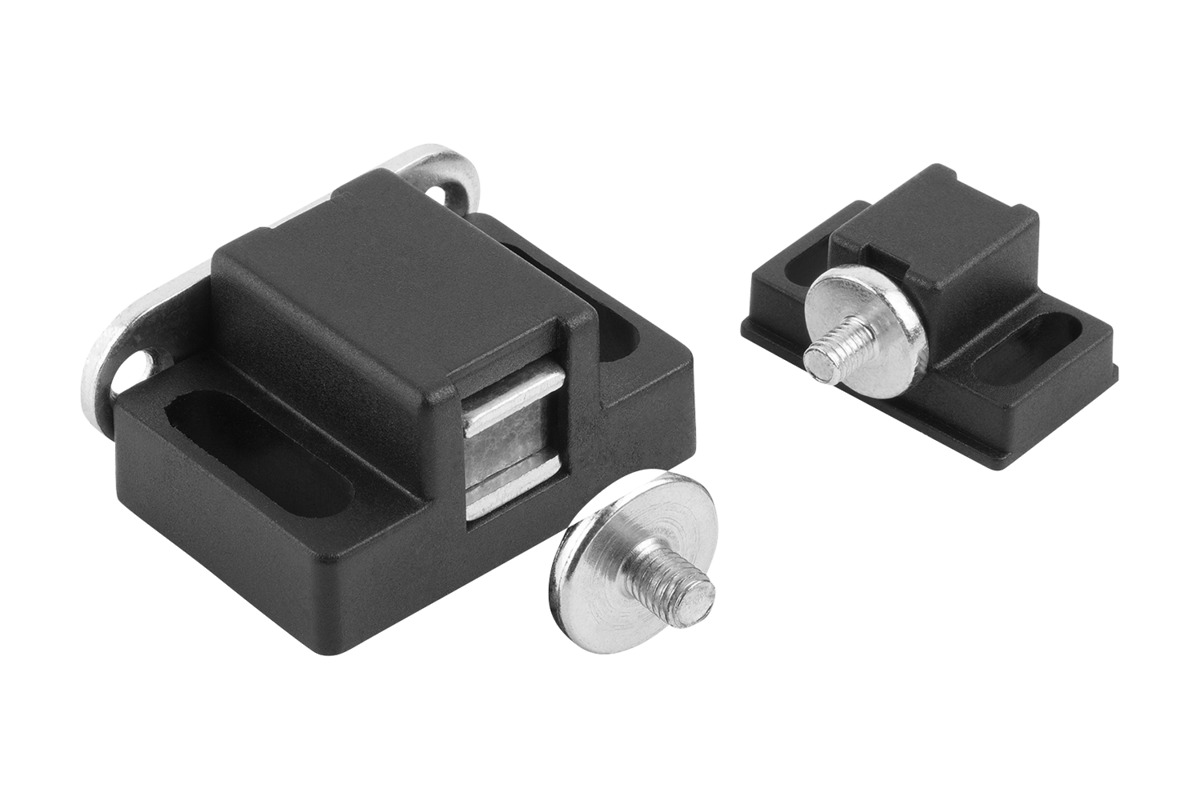

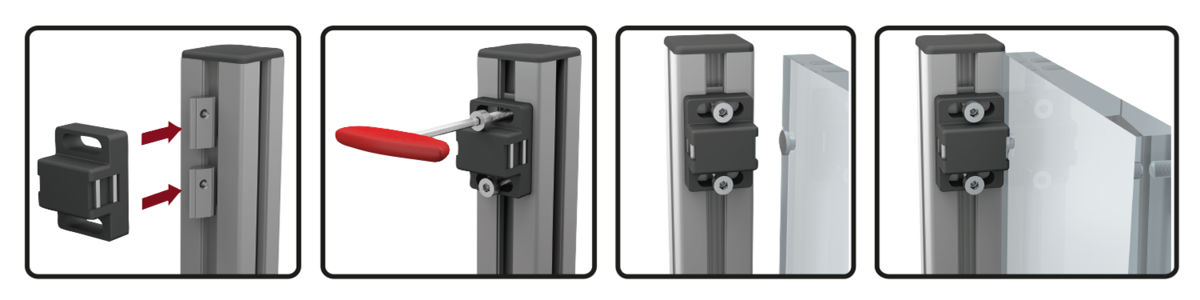

Magnetic catch for swing and sliding doors. The elongated holes enable flexible positioning on aluminium profiles and panel elements.
Drawing reference
1) Pan head screw
2) Retaining plate
2) Retaining plate
