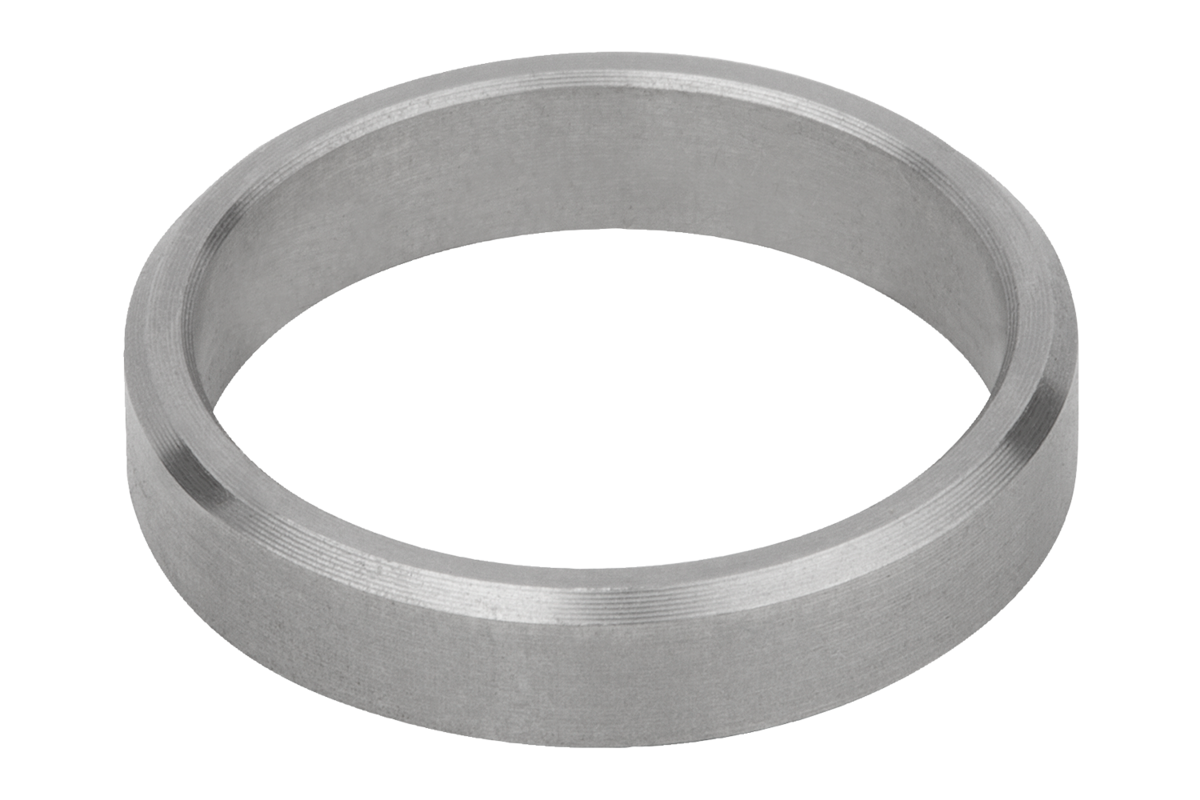

  2. Flexible standard component system
  3. 03000
  4. Accessories for indexing plungers, cam-action indexing plungers and ball lock pins
    5. Spacer rings stainless steel for push button latches

Description

Product description
In combination with push button latches, the plate thickness can be varied from 3 to 10 mm. See assembly drawing.
Material
Stainless steel
Version
Bright.
Drawing reference
1) Plate
2) Push button latch
3) Spacer ring
Accessory
Push button latches 03192-15.
In order to download our CAD models, you must log in first. If you have not created an account yet, please register under "My Account" (right side of the screen) and follow the instructions.
